Rev. 1.0
Rev. 2.0A
Rev. 2.0B
Rev. 3.0
Rev. 4.0

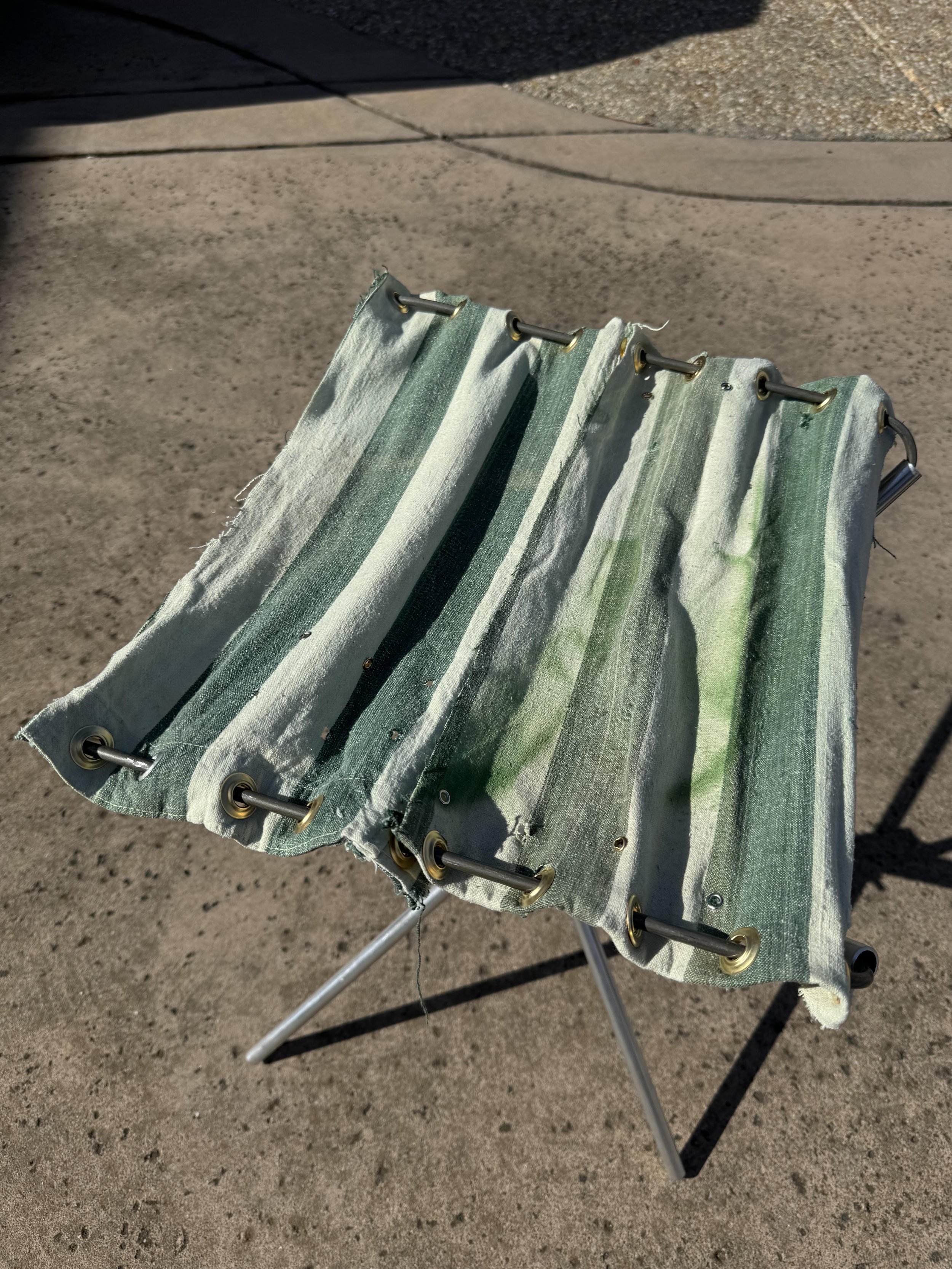

Portable Folding Chair (Rev.04)
Weight: 2 lb 2.0 oz; Chair Height: 18 inches
Bill of Material
Aluminums Pipe (1/2” x 26” @4)
Screw (3/8” @2)
Center Join Piece (3D Printed) 40x40x80 mm
Metal Wire
Metal Solid Rod (1/4” x 20” @2)
Grommet (3/8” @20)
Cloth (as Seat)
Portable Folding Chair (Rev.03)
Weight: 2 lb 5.5 oz; Chair Height: 18 inches
Bill of Material
Aluminums Pipe (3/4” x 26” @4)
Screw (3/8” @2)
Center Join Piece (3D Printed) 40x40x80 mm
Metal Wire
Cloth (as Seat)

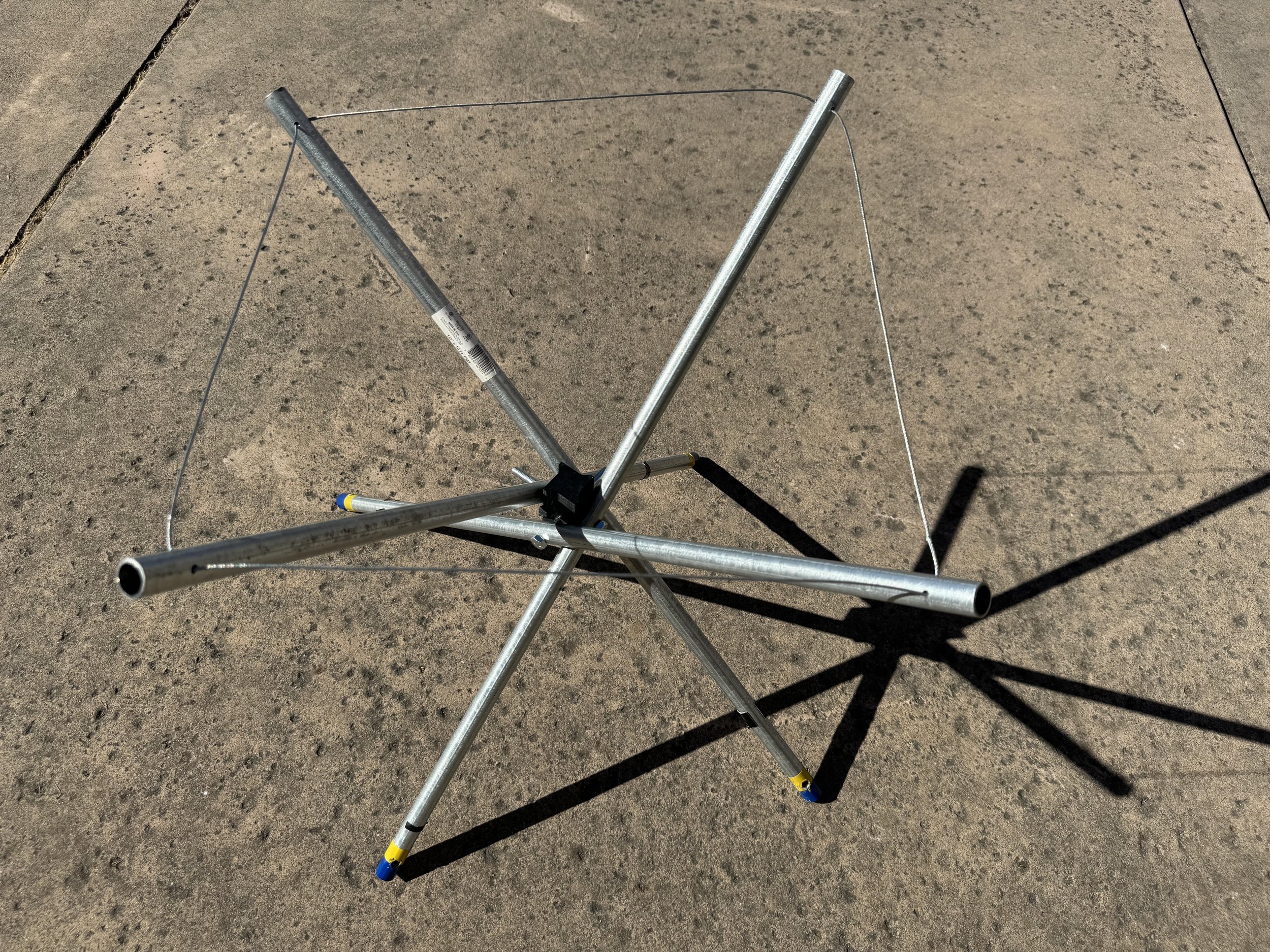

Portable Folding Chair (Rev.02.B)
Weight: 3 lb 12.7 oz; Chair Height: 20 inches
Bill of Material
EMT Pipe (3/4” x 30” @4)
Screws (3/8” @2)
Center Join Piece (3D Printing) 40x40x80mm
Metal Wire
Cloth (as seat)
Fold it and Go!

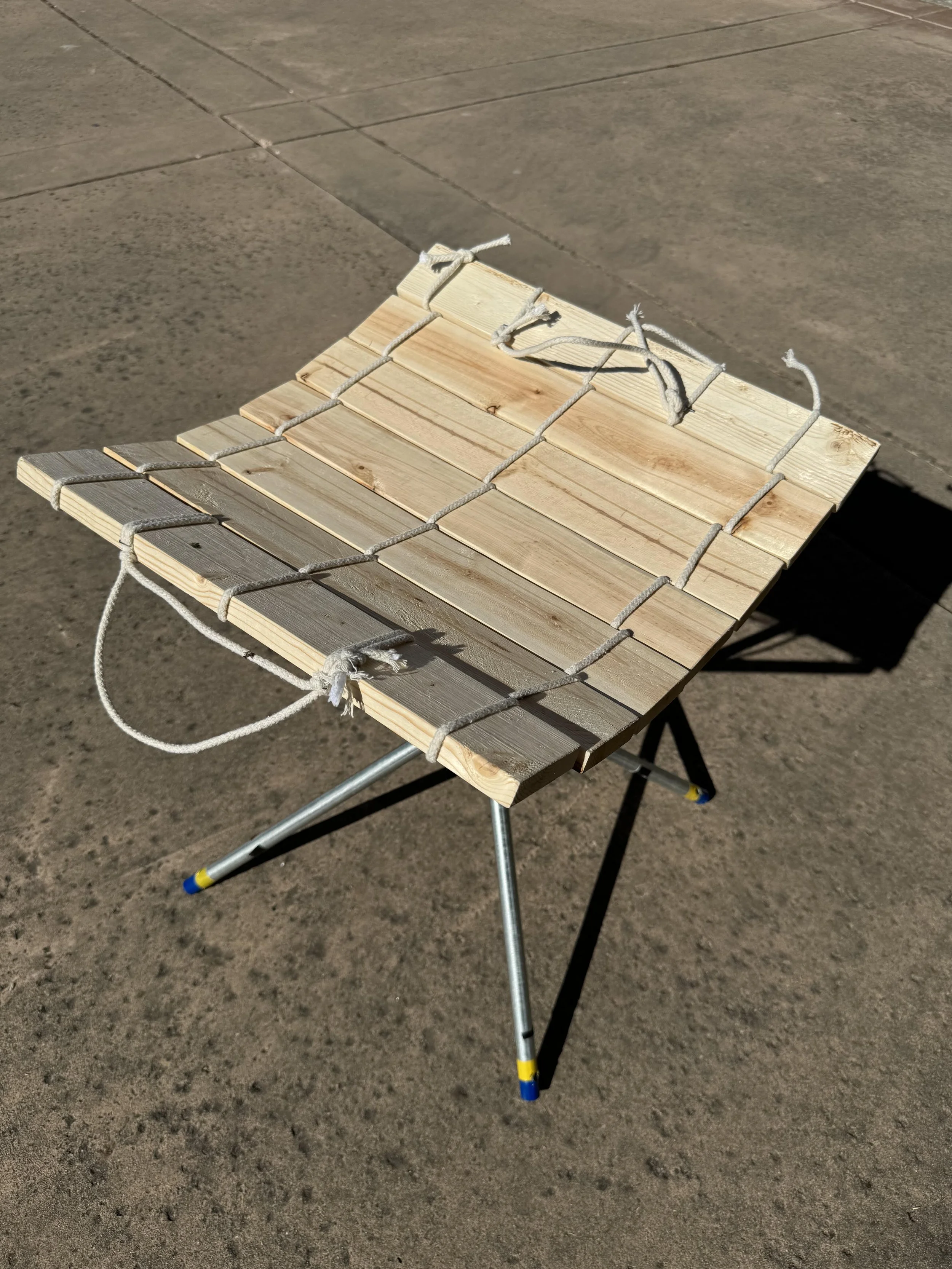

Portable Folding Chair (Rev.02.A)
Weight : 6 lb 13.3 oz; Chair Height: 20 inches
Bill of Material
EMT pipe (3/4” x 30” @4)
Screws (3/8” @2)
Center Join Piece (3D Printing) 40x40x80 mm
Metal Wire
Wood Piece (as seat)

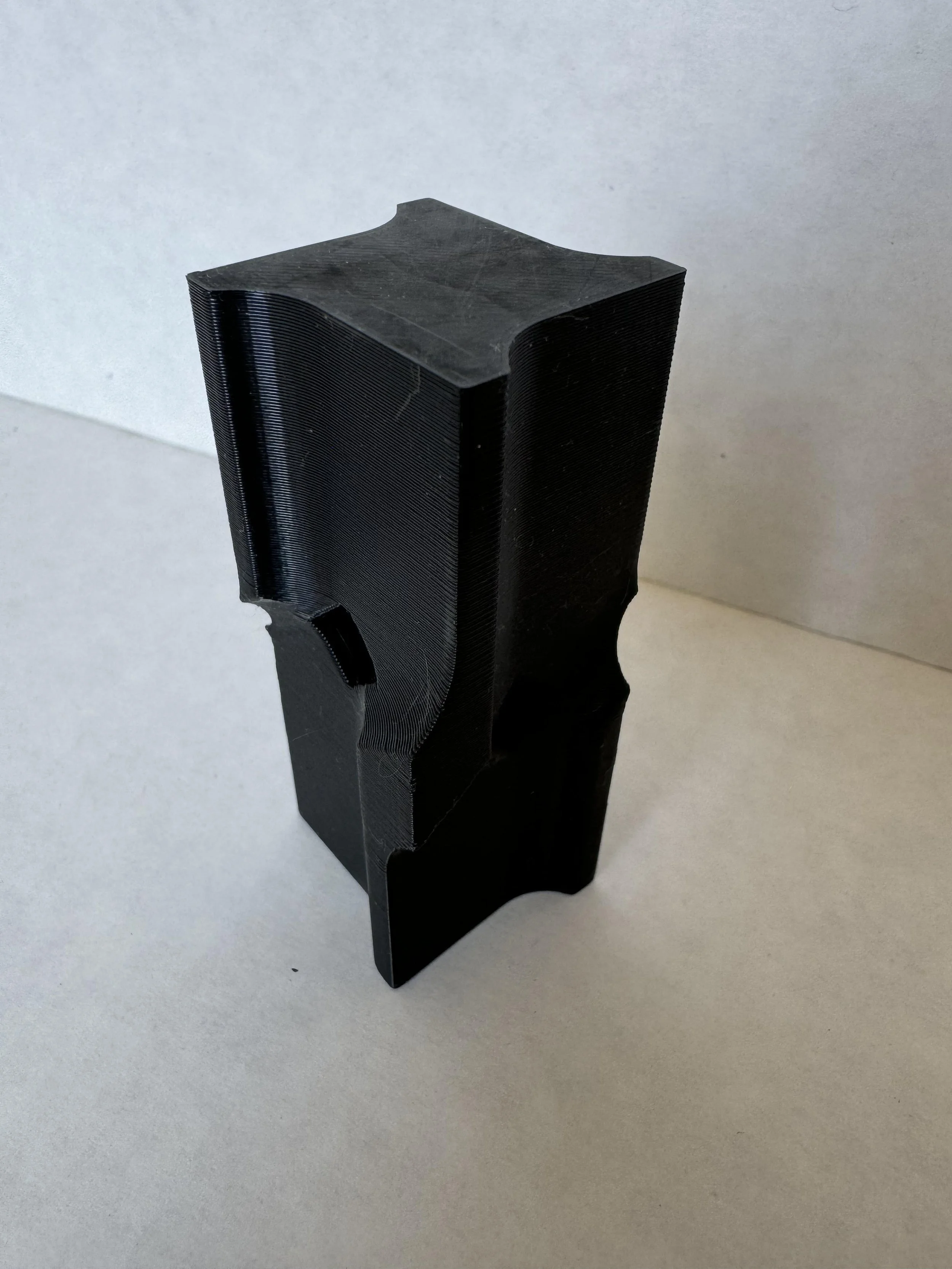

3D Printed center join piece. 40x40x80 (mm)
Portable Folding Chair (Rev.01)
Weight : 2 lb 11 oz; Chair Height: 20 inches
Center Join Piece Concept
Bill of Material
PVC Pipe (3/4” x 30” @4)
Screw ()
Center Join Wood piece (2x2x6 inch @1)
Rope
Cardboard (as seat)
Easy, Simple to carry
